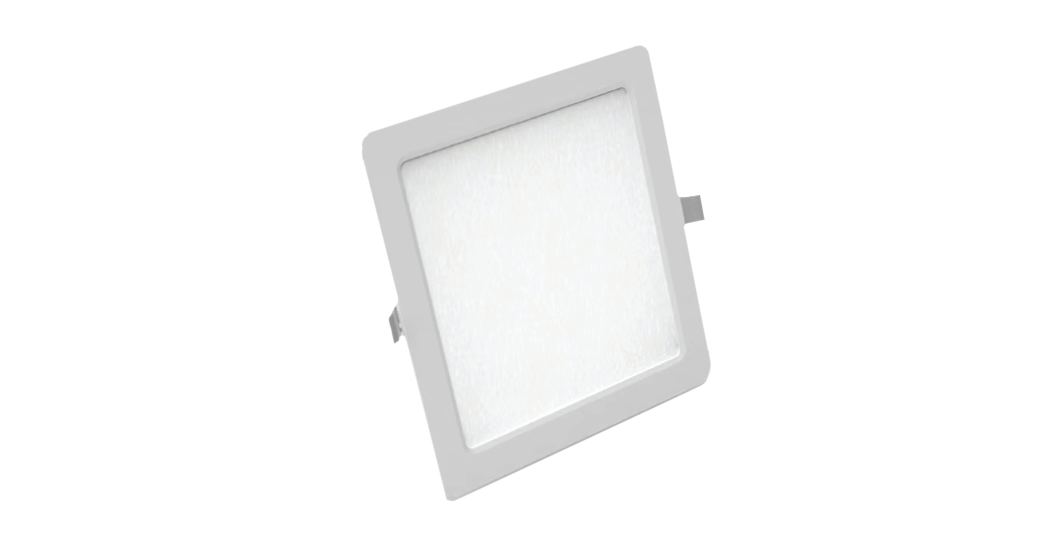

LED SQUARE PANELS - RECESSED

  • Quality tested and approved.
  • Designed and Engineered for Commercial and residential lighting.
  • High efficiency light source for greater illumination brightness.
    • CE
    • CB
    • RoHS
  • Protection IP20
  • 20000 Hrs
  • Beam Angle 120o

Application

LED lighting solutions that delivers visual comfort and bright,
uniformillumination across application areas.

Features

  • Light Source
  • SMD LED
  • Input Voltage
  • AC 185 - 265V
  • Frequency
  • 50/60 Hz
  • Surge Protection
  • 1500 v
  • CRI
  • > 80
  • IP Rating
  • IP20
  • Adjustable
  • No
  • Color Temperature [CCT]
  • 2700K, 3000K, 4000K, 6500K
  • Life Span
  • 20000 Hours
  • Beam Angle
  • 120°
  • Dimming Option
  • No
  • Installation Type
  • Ceiling Recessed
  • Ceiling Thickness
  • 3 - 20 mm

CCT Option

Technical Parameters

Product Code Power (W) CCT (K) Lumen (Lm) Size (MM) CutOut (MM)
M-PLSQ09D 9 6500 630 143 X 143 X 26.5 135
M-PLSQ09W 9 3000 630 143 X 143 X 26.5 135
M-PLSQ12D 12 6500 840 143 X 143 X 26.5 135
M-PLSQ12W 12 3000 840 143 X 143 X 26.5 135
M-PLSQ18D 18 6500 1260 173 X 173 X 26.5 165
M-PLSQ18W 18 3000 1260 173 X 173 X 26.5 165
M-PLSQ24D 24 6500 1800 218 X 218 X 27.5 205
M-PLSQ24W 24 3000 1800 218 X 218 X 27.5 205
M-PLSQ28D 28 6500 2100 293 X 293 X 27.5 280
M-PLSQ28W 28 3000 2100 293 X 293 X 27.5 205
