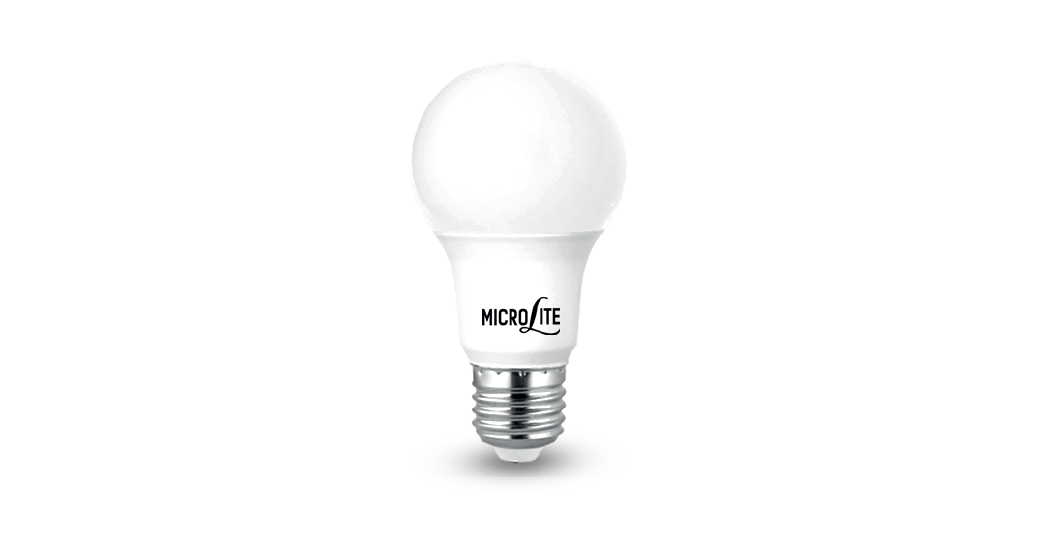

BULBS

  • Adopts EMC 3030 as light source with high lumen output.
  • Quality tested and approved with high uniformity in color temperature and efficiency.
  • Used in residential and commercial indoor applications.
    • CE
    • CB
    • RoHS
  • Protection IP20
  • 15000 Hrs
  • Beam Angle 200o
  • E27
  • B22

Application

LED lighting solutions that delivers visual comfort and bright,
uniformillumination across application areas.

Features

  • Light Source
  • SMD 3528
  • Input Voltage
  • AC 140 - 280V
  • Frequency
  • 50/60 Hz
  • Surge Protection
  • 1500V
  • CRI
  • > 80
  • IP Rating
  • IP20
  • Color Temperature [CCT]
  • 2700K, 3000K, 4000K, 6500K
  • Life Span
  • 15000 Hours
  • Beam Angle
  • 200°
  • Cube base
  • E27 and B22
  • Housing
  • High quality thermal conductive plastic

CCT Option

Technical Parameters

Product Code Power (W) CCT (K) Lumen (Lm) Product Dimen.(mm)
M-LB5WB22-D 5 6500 450 110x62[A57]
M-LB5WB22-W 5 3000 429 110x62[A57]
M-LB7WB22-D 7 6500 630 110x62[A57]
M-LB7WB22-W 7 3000 599 110x62[A57]
M-LB10WB22-D 10 6500 900 110x62[A57]
M-LB10WB22-W 10 3000 900 110x62[A57]
M-LB12WB22-D 12 6500 1080 127x70(A60)
M-LB12WB22-W 12 3000 1026 127x70(A60)
M-LB15WB22-D 15 6500 1350 127x70(A60)
M-LB15WB22-W 15 3000 1350 127x70(A60)
M-LB5WE27-D 5 6500 450 110x62[A57]
M-LB5WE27-W 5 3000 429 110x62[A57]
M-LB7WE27-D 7 6500 630 110x62[A57]
M-LB7WE27-W 7 3000 599 110x62[A57]
M-LB10WE27-D 10 6500 900 110x62[A57]
M-LB10WE27-W 10 3000 900 110x62[A57]
M-LB12WE27-D 12 6500 1080 127x70(A60)
M-LB12WE27-W 12 3000 1026 127x70(A60)
M-LB15WE27-D 15 6500 1350 127x70(A60)
M-LB15WE27-W 15 3000 1350 127x70(A60)
